| Applicable | API 6D |
| Standards | Design according to ASME B16.34 or ASME VIII Div. 1 & 2 |
| Pressure Class | ANSI Class 150 lbs. to 4500 lbs. |
| Size Range | From 1/2″ to 8″ |
| Ends Design | Flanged (RF/RTJ) – ASME B16.5, ASME B16.47 or MSS SP-44 Compact (Norsok Standard L-005) Butt-Weld (ASME B16.25) and/or Butt-Weld + Pipe Hubbed according to client Clamp Special client’s requirements |
| Body Design | Two or Three Pieces |
| Closure Design | Bolted Closure |
| Seat Design | Soft Sealing – Metal to Metal (c/w hardfacing) |

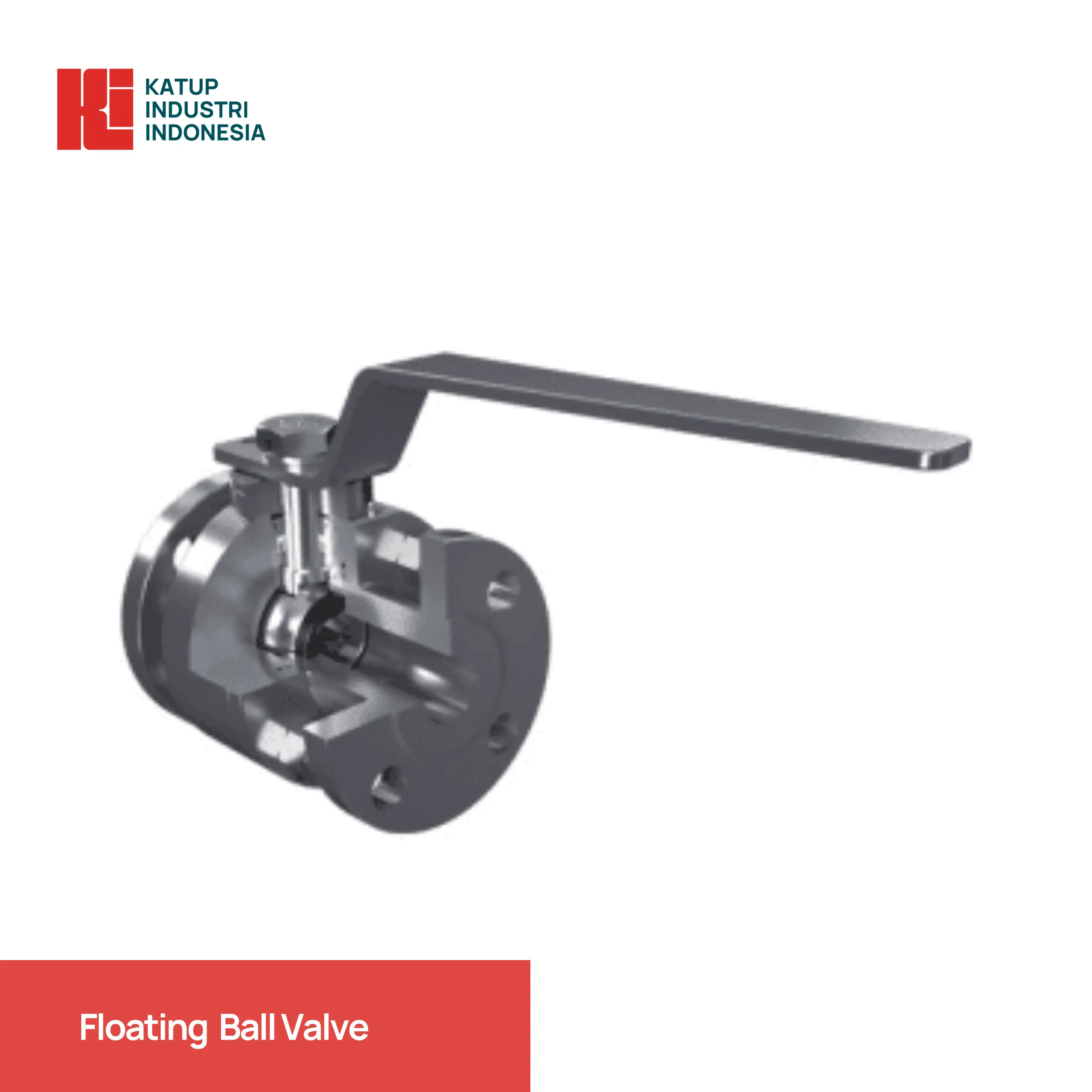

| Valve Operation | Manual: Lever or Gearbox |
| Available Materials | CS, LTCS, SS, Duplex SS, Super Duplex SS, 6Mo, Inconel, Incoloy, Hastelloy, Monel, Titanium NACE MR0175 according to client request. |
| Additional Features | Anti Blowout Stem, Antistatic Device |
| Testing and Certification | Testing: Hydrostatic, High Pressure Gas, Pneumatic and Functional API 598 – API 6D Fire testing: API 6FA, API 607, BS 6755 part 2, ISO 10497 Fugitive Emission Test: ISO 15848 – 1 & 2 PED 2014/68/UE Mod.H |
