OMS Saleri
Ball Valves

Trunnion Ball Valve

chevron-rightCreated with Sketch Beta. Inquire Now

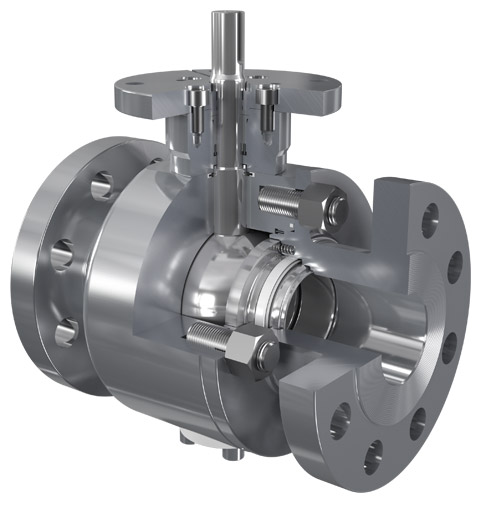

Three pieces ball valves, trunnion type with self regulating seats. Suitable for all refinery, petrochemical, chemical, gasline, pipeline, on-shore and off-shore services.
Specificationschevron-downCreated with Sketch Beta.
SPECIFIC DATA
Materials:
Carbon steels, stainless steels
Special alloys: Monel, Hastelloy, Alloy 20, Incoloy, Duplex S.S., peculiar copper alloys, others

Ends:
Flanged

3 Pieces
2″ Full Bore class 600# to 1500# & API 6A 5000 PSI
2″ – 3″ Reduced Bore class 600# to 2500# & API 6A 5000 PSI

3 Pieces
6″ ÷ 66″ Full Bore class 150#/300#
2″ ÷ 56″ Full Bore class 600#
2″ ÷ 48″ Reduced Bore class 600#
2″ ÷ 40″ Reduced Bore class 1500#
2″ ÷ 36″ Reduced Bore class 2500#
3″ & Above Full Bore class 600# to 2500# & API 6A 15000 PSI
4″ & Above Full Bore class 600# to 2500# & API 6A 15000 PSI
6″ & Above Full Bore class 150# to 2500# & API 6A 5000 to 15000 PSI

3 Pieces
21⁄16” ÷ 11″ Full Bore/Reduced Bore class 3000#/5000# & API 6A 2000/3000/5000 PSI
113⁄16” ÷ 11″ Full Bore class 10000#/15000# & API 6A 10000 PSI
113⁄16” ÷ 51⁄8” Full Bore class 15000# & API 6A 15000 PSI
21⁄16” ÷ 51⁄8” Reduced Bore class 15000# & API 6A 15000 PSI
