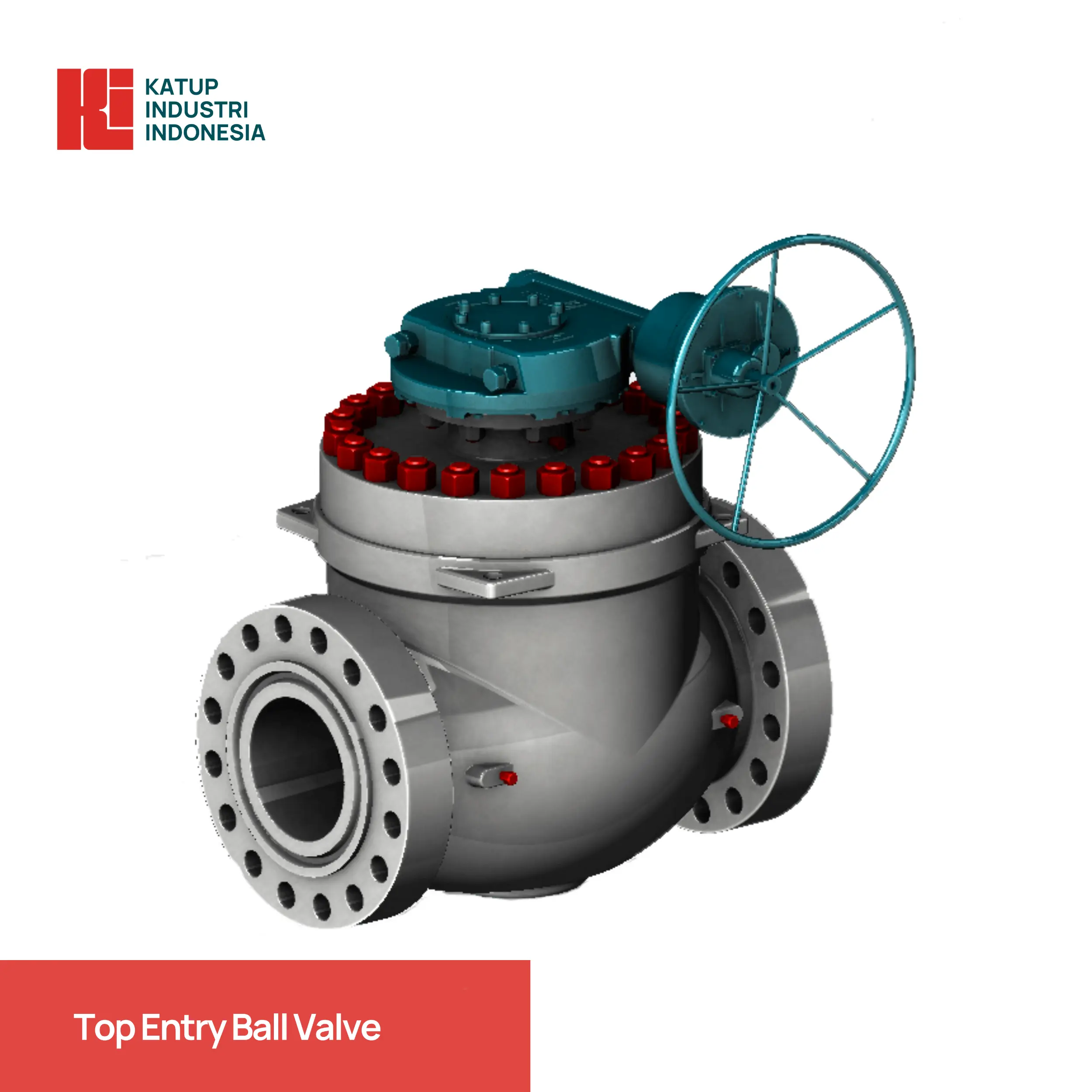

Top Entry Ball Valve

Specifications

SPECIFIC DATA

Materials:

Carbon steels, stainless steels

Special alloys: Monel, Hastelloy, Alloy 20, Incoloy, Duplex S.S., peculiar copper alloys, others

Ends:

Flanged

Socket Weld

Butt Weld

3 Pieces

2″ Full Bore class 600# to 1500# & API 6A 5000 PSI

2″ – 3″ Reduced Bore class 600# to 2500# & API 6A 5000 PSI

3 Pieces

6″ ÷ 66″ Full Bore class 150#/300#

2″ ÷ 56″ Full Bore class 600#

2″ ÷ 48″ Reduced Bore class 600#

2″ ÷ 40″ Reduced Bore class 1500#

2″ ÷ 36″ Reduced Bore class 2500#

3″ & Above Full Bore class 600# to 2500# & API 6A 15000 PSI

4″ & Above Full Bore class 600# to 2500# & API 6A 15000 PSI

6″ & Above Full Bore class 150# to 2500# & API 6A 5000 to 15000 PSI

3 Pieces

21⁄16” ÷ 11″ Full Bore/Reduced Bore class 3000#/5000# & API 6A 2000/3000/5000 PSI

113⁄16” ÷ 11″ Full Bore class 10000#/15000# & API 6A 10000 PSI

113⁄16” ÷ 51⁄8” Full Bore class 15000# & API 6A 15000 PSI

21⁄16” ÷ 51⁄8” Reduced Bore class 15000# & API 6A 15000 PSI
